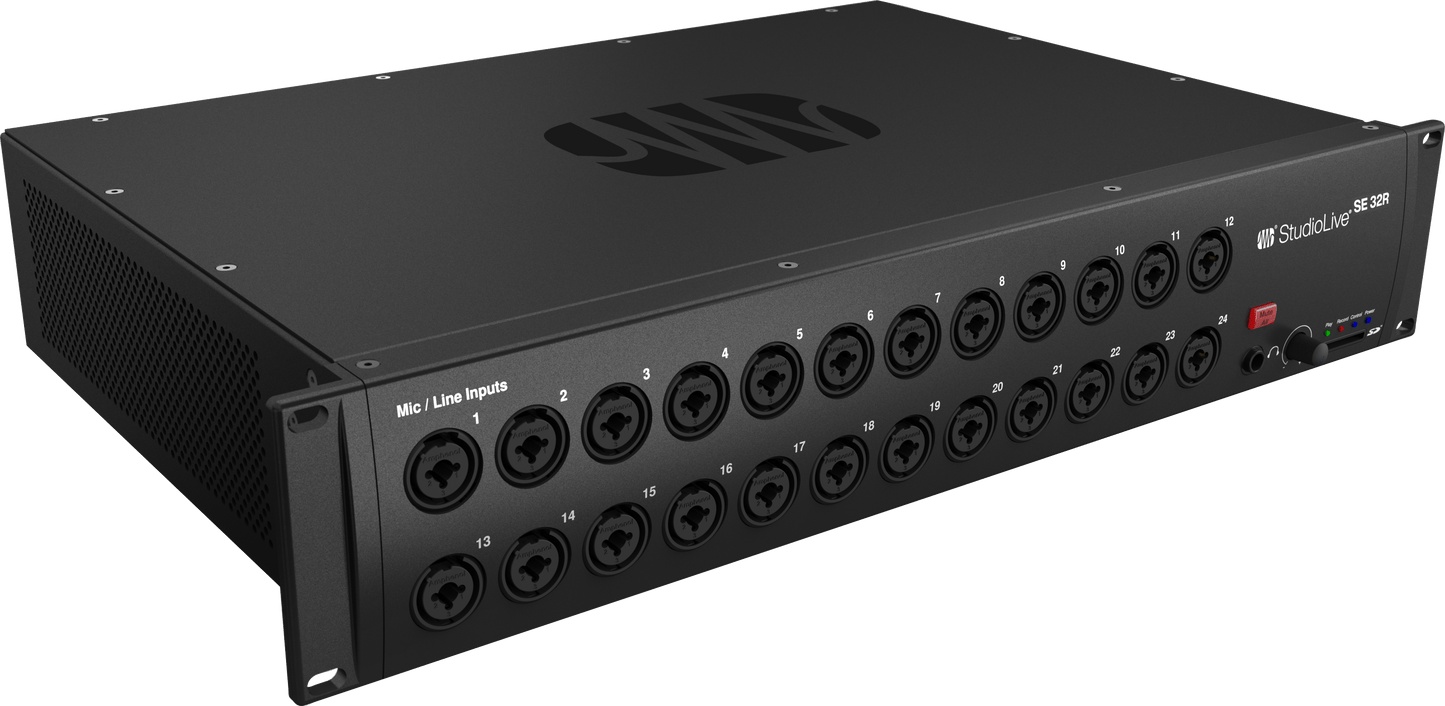

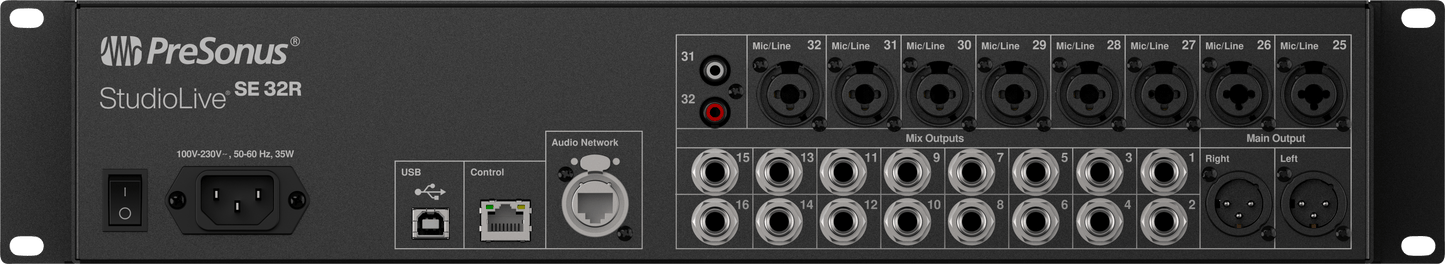

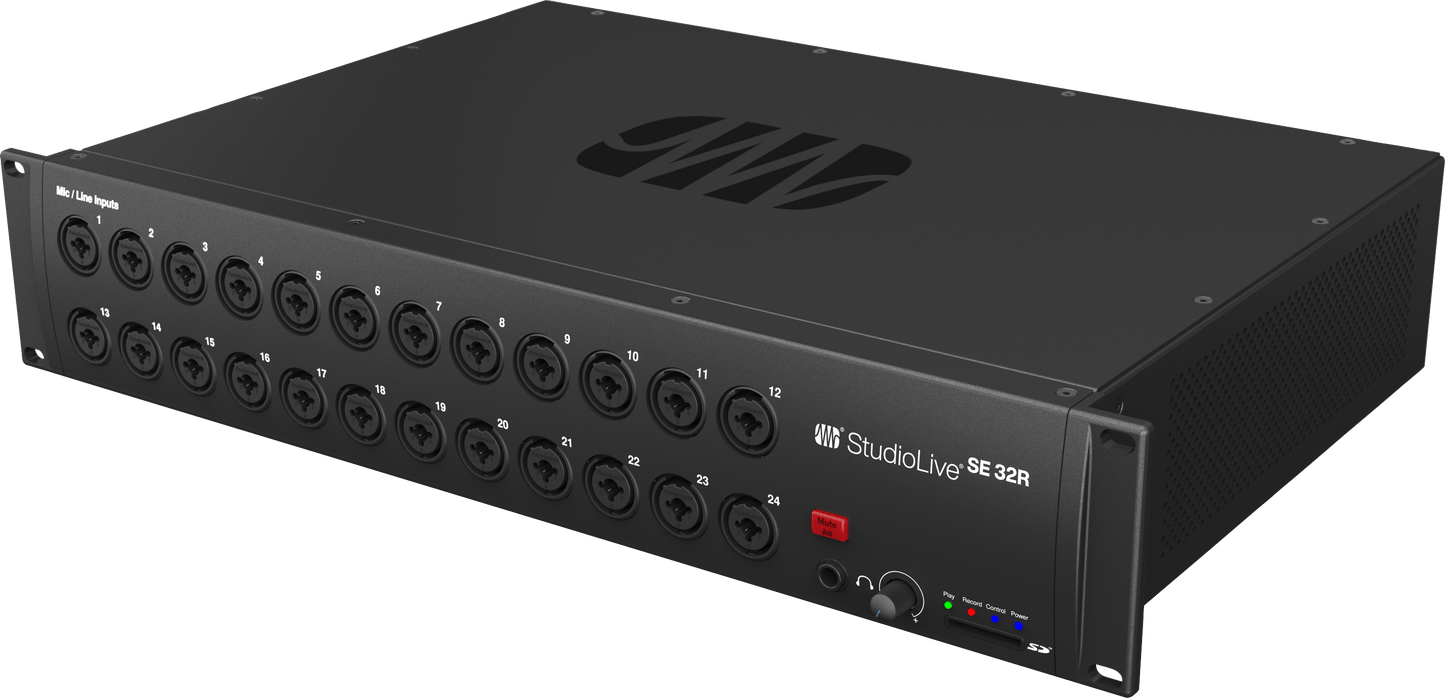

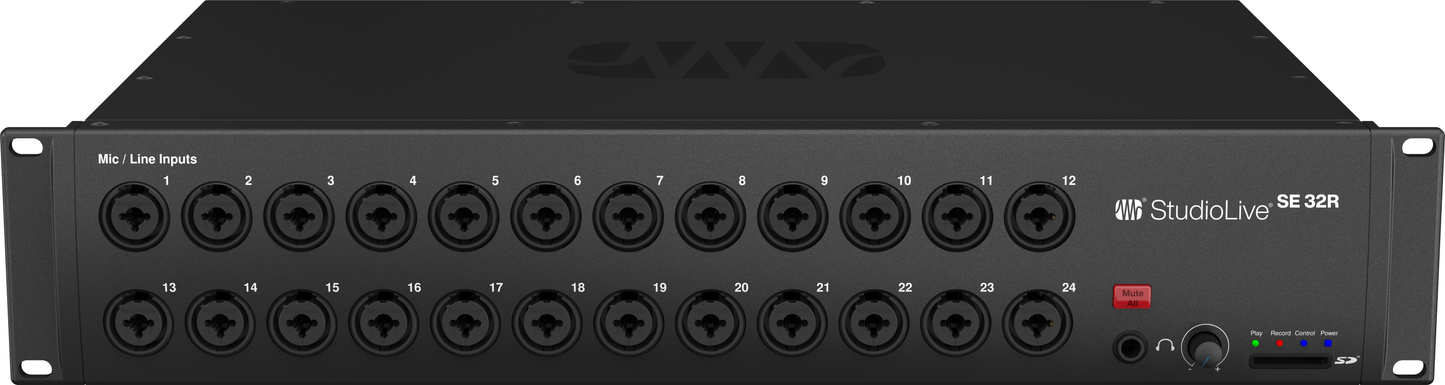

StudioLive® SE 32R Digital Rack Mixer
StudioLive® SE 32R Digital Rack Mixer
Impossibile caricare la disponibilità di ritiro

Panoramica
40-channel rack mixer with 32 onboard XMAX-R recallable preamps, 16 FlexMixes plus four dedicated subgroups, multitrack USB plus stereo SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, and recording
StudioLive SE 32R combina 32 preamplificatori XMAX-R richiamabili con 16 FlexMix, 4 sottogruppi, 4 mix FX e 24 DCA per il controllo completo dei canali. L'interfaccia audio USB bidirezionale 64x64 continua, la registrazione stereo SD integrata e il software Virtual Soundcheck con Capture offrono una soluzione completa per la registrazione e la riproduzione.
Il networking AVB certificato Milan garantisce una perfetta integrazione con stagebox NSB, mixer EarMix 16M Personal Monitor e altri mixer StudioLive Serie III. La commutazione delle sorgenti per canale e il controllo wireless con Universal Control e QMix-UC offrono a ingegneri e artisti la massima flessibilità del flusso di lavoro.
Overview
Caratteristiche
- Mixer digitale rack a 40 canali con 32 preamplificatori XMAX-R richiamabili
- 16 FlexMix configurabili come mix Aux, sottogruppi o matrice
- 4 sottogruppi dedicati e 4 mix FX con ritorni stereo
- 24 gruppi DCA per un controllo preciso
- Interfaccia audio USB 2.0 64x64 bidirezionale continua
- Registrazione stereo SD integrata
- Integrazione dell'acquisizione con Virtual Soundcheck
- Rete AVB certificata Milan per ecosistemi Serie III
- Commutazione sorgente per canale (analogico, USB, SD, AVB)
- Mixaggio remoto Universal Control ed editor offline
- Mixaggio monitor personale QMix-UC
- Modalità standalone, mixer monitor o stagebox
- Licenza perpetua per Fender Studio Pro inclusa
Download
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Capture 2 v2.3.2.43810 (Windows)
- Capture 2 v2.3.2.44119 (Windows)
- Capture 2 v2.3.5.44938 (Windows)
- Capture 2 v2.3.6.45267 (Windows)
- Capture v2.3.6.45951 (Windows)
- Capture v2.4.0.47589 (Windows)
- Capture v2.4.0.47644 (Windows)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
In primo piano
FLESSIBILITÀ ELEVATA DEI CANALI
32 preamplificatori XMAX-R integrati con routing versatile FlexMix, sottogruppo, FX e DCA.
INSTRADAMENTO E MONITORAGGIO PROFESSIONALI
Progettato per garantire mobilità, versatilità e flessibilità: in viaggio, sul palco o in studio.
REGISTRAZIONE FACILE
Registrazione USB 64x64, scheda SD stereo integrata e Virtual Soundcheck con integrazione del software Capture e Fender Studio Pro.
WIRELESS E PRONTO PER LA RETE
Universal Control e QMix-UC mettono il mixaggio nelle tue mani, mentre la rete audio certificata Milan semplifica l'espansione del tuo sistema.
INTEGRAZIONE FENDER STUDIO PRO
La profonda integrazione con Fender Studio Pro semplifica la registrazione con controllo diretto del preamplificatore e passaggio senza interruzioni tra elaborazione integrata e plug-in con Fat Channel XT.
Specifiche
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V EUR
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
StudioLive® SE 32R Digital Rack Mixer, Black, EU
Series
StudioLive®
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
11.2 lbs. (5 kg)
Product Width
19" (483mm)
Refinement Weight
25-under
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
