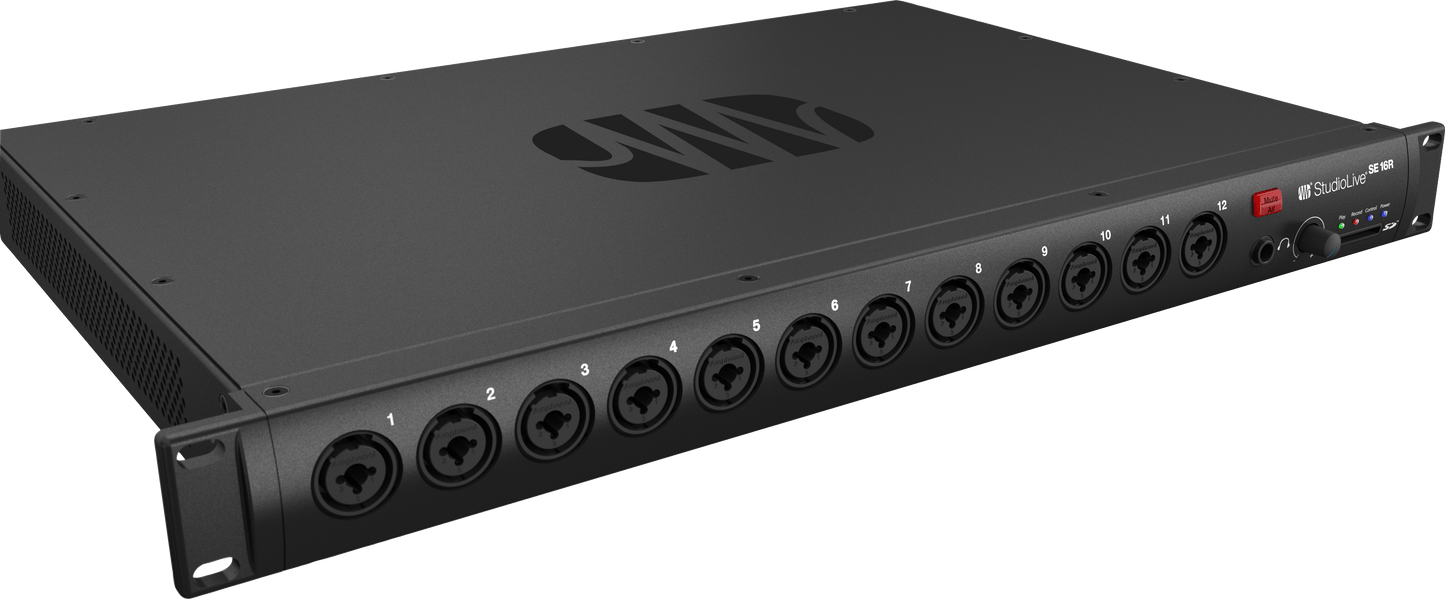

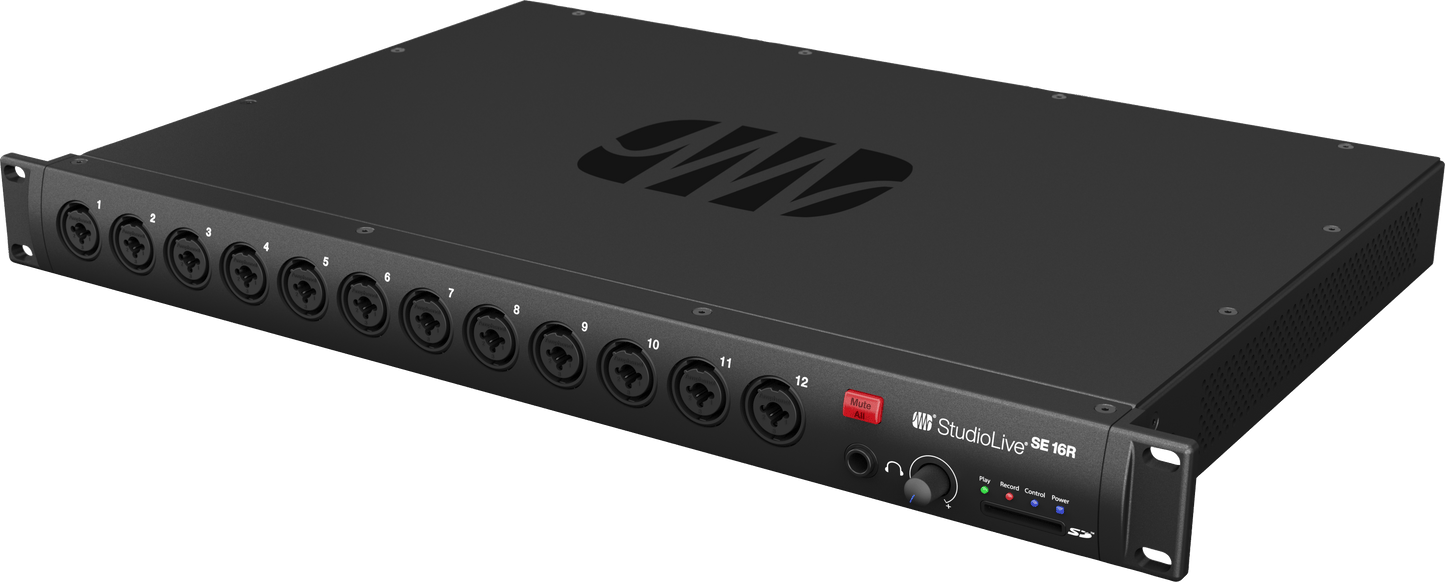

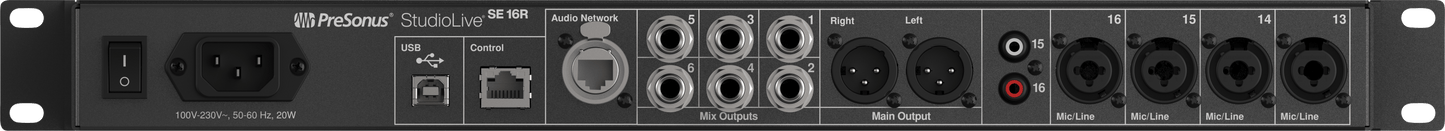

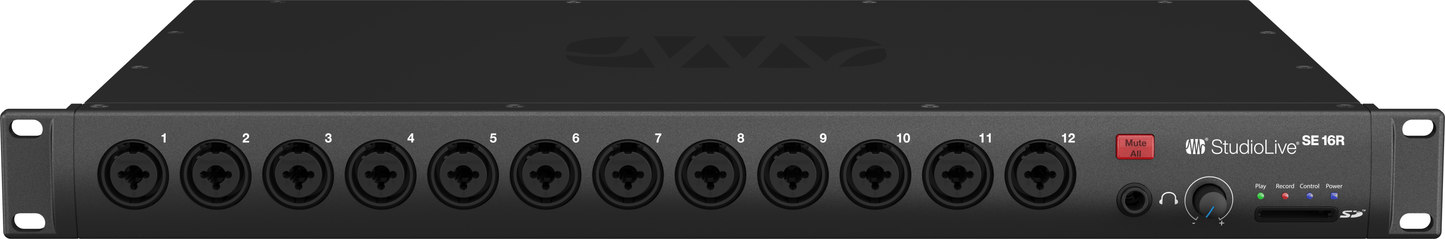

StudioLive® SE 16R Digital Rack Mixer
StudioLive® SE 16R Digital Rack Mixer
SKU:
2779206204
Prezzo di listino
999,00 €
Prezzo di listino
999,00 €
999,00 €
Prezzo scontato
Prezzo unitario
per
IVA inclusa*
Impossibile caricare la disponibilità di ritiro
Panoramica
Compact 18-channel digital rack mixer with XMAX-R recallable preamps, six FlexMixes, integrated USB and SD recording, and Milan-certified audio networking for live mixing, in-ear monitor rigs, recording, and livestreaming.
StudioLive SE 16R racchiude la potenza di un mixaggio di grande formato in un'unità rack compatta da 1U. Con 16 preamplificatori microfonici XMAX-R richiamabili e l'elaborazione FLEX DSP Fat Channel, ogni ingresso e bus è dotato di equalizzazione e compressione di livello studio per un suono professionale e raffinato. Sei FlexMix, due mix FX dedicati e sei DCA offrono un controllo completo del routing.
La registrazione USB 18x18 integrata, l'acquisizione stereo SD integrata e il Virtual Soundcheck con software Capture semplificano la registrazione e la riproduzione. La commutazione della sorgente per canale tra analogico, USB, SD e AVB semplifica le configurazioni ibride. Il networking audio integrato certificato Milan consente il funzionamento plug-and-play con l'intera linea di prodotti StudioLive Serie III, mentre Universal Control e QMix-UC offrono la massima libertà di mixaggio wireless.
Overview
Caratteristiche
- Mixer digitale a rack a 18 canali con 16 preamplificatori microfonici XMAX-R richiamabili
- 6 FlexMix configurabili come mix Aux, Subgroup o Matrix
- 2 mix FX dedicati con ritorni stereo
- Interfaccia audio USB 2.0 18x18 bidirezionale continua
- Registrazione stereo SD integrata
- Soundcheck virtuale con software di acquisizione
- Rete AVB certificata Milan per sistemi StudioLive Serie III
- Commutazione sorgente per canale (analogica, USB, SD, AVB)
- Telecomando Universal Control Mixaggio e editor offline
- Mixaggio monitor personale QMix-UC con Wheel of Me
- Modalità standalone, mixer monitor, interfaccia o stagebox
- Licenza perpetua per Fender Studio Pro inclusa
Download
Don't see what you're looking for?
Log in to your my.presonus.com account.
- StudioLive® Series III 16R Digital Rack Mixer Firmware v3.3.0.109659
- Studio One Remote Installer v1.2 (Android)
- Capture 2 v2.4.0.50756 (Mac)
- Capture 2 v2.4.0.50756 (Windows)
- Capture v3.0.0.51747 (Mac)
- Capture v3.0.0.51747 (Windows)
- Capture v3.0.1.52030 (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
In primo piano
MISCELAZIONE COMPATTA E PRONTA PER IL TOUR
18 canali con preamplificatori completamente richiamabili e potenza DSP in un rack 1U.
INSTRADAMENTO FLESSIBILE
FlexMix, bus FX e DCA configurabili rendono la creazione di mix di qualità da studio rapida e semplice.
REGISTRAZIONE SENZA INTERRUZIONI
USB multitraccia con integrazione Capture e soundcheck virtuale, più registrazione stereo SD integrata.
PRONTO PER LA RETE E LA CONNESSIONE WIRELESS
Rete AVB certificata Milan, Universal Control e QMix-UC per la massima libertà di flusso di lavoro.
INTEGRAZIONE FENDER STUDIO PRO
La profonda integrazione con Fender Studio Pro semplifica la registrazione con controllo diretto del preamplificatore e passaggio senza interruzioni tra elaborazione integrata e plug-in con Fat Channel XT.
Specifiche
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V EUR
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
StudioLive® SE 16R Digital Rack Mixer, Black, EU
Series
StudioLive®
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (30.5 cm)
Product Height
1.75" (4.45 cm)
Product Height/Length
1.75" (4.45 cm)
Product Weight
8.6 lbs. (3.9 kg)
Product Width
19" (48.3 cm)
Refinement Weight
25-under
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
Specifiche
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
230V UK
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Black
Product Name
StudioLive® SE 16R Digital Rack Mixer, Black, UK
Series
StudioLive®
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (30.5 cm)
Product Height
1.75" (4.45 cm)
Product Height/Length
1.75" (4.45 cm)
Product Weight
8.6 lbs. (3.9 kg)
Product Width
19" (48.3 cm)
Refinement Weight
25-under
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
