Our classic StudioLive 16.0.2 digital console mixer with USB 2.0 connectivity for small churches, schools, bands, clubs, and studios.
Visualizza dettagli completi

StudioLive® Classic 16.0.2 USB Digital Console Mixer

€1.049,00
€1.049,00 €1.049,00
In offerta Esaurito

      Panoramica

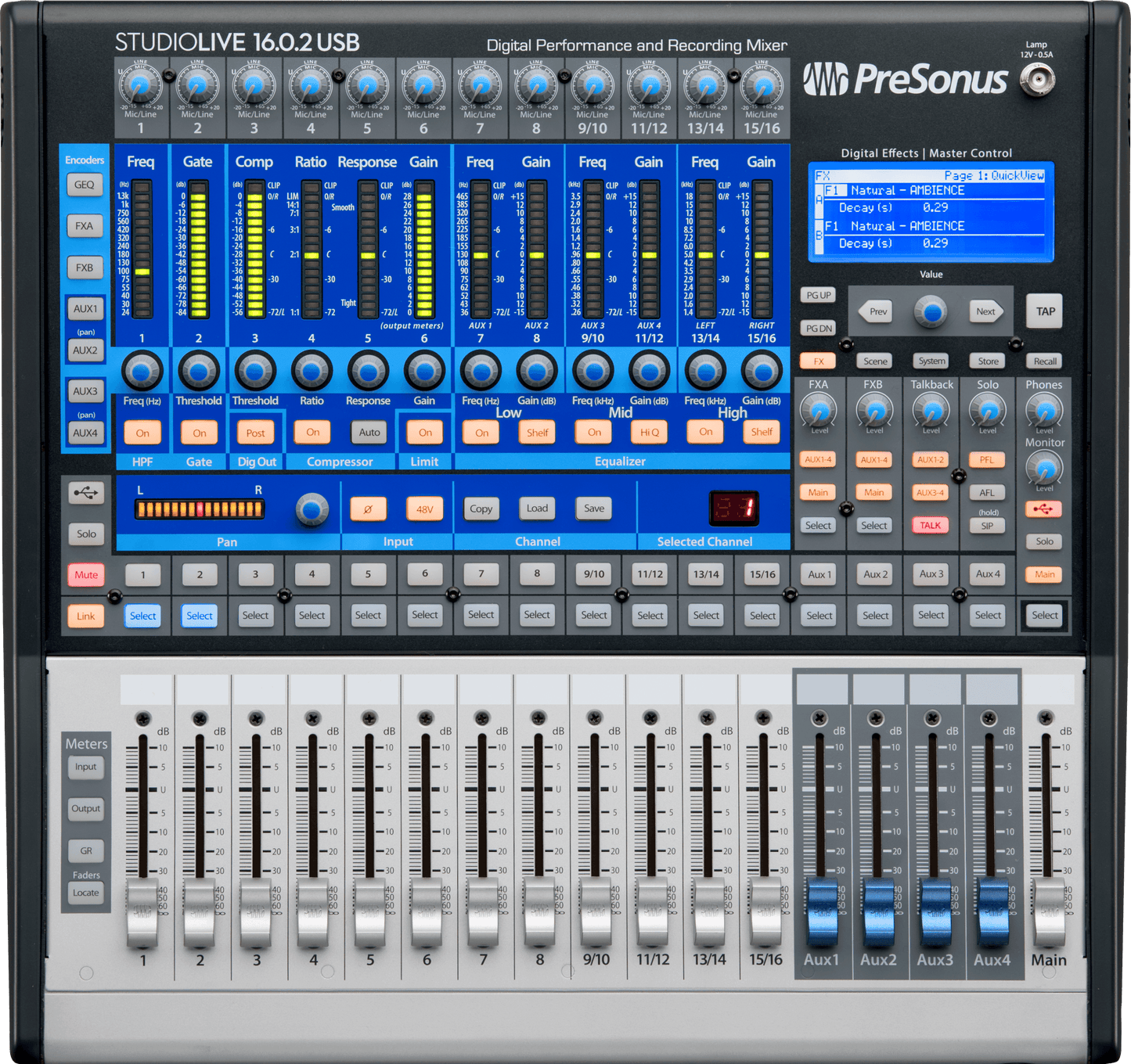

      L'interfaccia familiare e di facile utilizzo di StudioLive® 16.0.2 USB mantiene tutti i controlli critici visibili e accessibili, non sepolti in menu o livelli. Ma non lasciarti ingannare dall'analogico: StudioLive 16.0.2 USB offre la potenza del moderno mixaggio digitale, registrazione multitraccia, controllo remoto wireless e altro ancora.

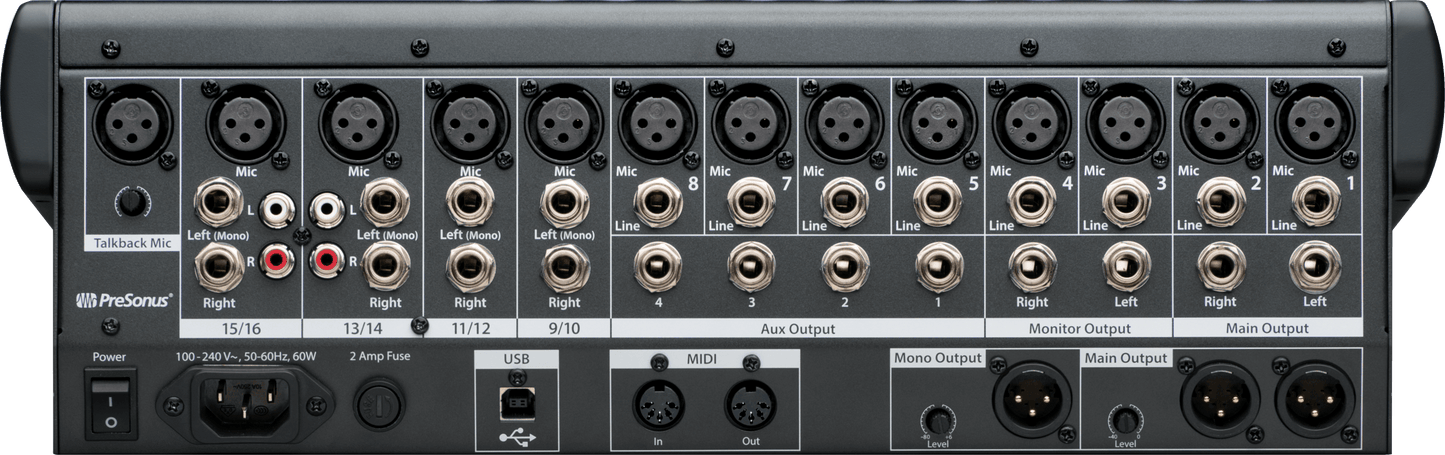

      Dotato di generosi I/O analogici e 12 XMAX Classe A preamplificatori microfonici a stato solido, ottieni anche un'ampia elaborazione del segnale e un'interfaccia di registrazione multicanale integrata. Come tutti i mixer StudioLive, l'USB 16.0.2 viene fornito con una suite di software di registrazione, missaggio e controllo strettamente integrati. Ed è così piccolo che puoi tenerlo facilmente in una mano e infilarlo sotto il braccio.

      L'interfaccia di registrazione multitraccia 18x16 integrata di StudioLive 16.0.2 USB è strettamente integrata con il resto del mixer. Tutti i 16 canali e il mix principale vengono trasmessi continuamente al tuo computer. Ogni canale può accedere in modo indipendente al suo ingresso analogico o al suo ritorno digitale dedicato dal tuo computer, quindi la registrazione è semplice e facile.

      StudioLive 16.0.2 USB offre anche potenti opzioni di controllo remoto. Mixa in modalità wireless da qualsiasi luogo utilizzando il software di controllo touch UC Surface. Controlla i singoli monitor mix dal tuo telefono con QMix®-UC. Usa un pedale MIDI o una DAW per richiamare scene, controllare il volume di uscita principale, i preset degli effetti e altro ancora. Puoi persino automatizzare queste funzionalità con una DAW! È un ottimo modo per rendere le tue esibizioni più emozionanti e varie, anche se non hai un fonico separato.

      Requisiti di sistema informatico

      Overview

      Caratteristiche

      • 8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
      • 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
      • On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
      • Stereo, 31-band graphic EQ on the main bus
      • 18-in/16-out USB 2.0 audio interface (24-bit/44.1 kHz and 48 kHz) records all channels and main L/R mix
      • MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
      • Software library includes PreSonus® Studio One® Artist DAW and Capture™ live-recording software for Mac® and Windows® and UC Surface mixer-control software for Mac, Windows, and iPad®. QMix®-UC touch wireless aux-control software for iPhone®, iPod® touch, and Android™ are also available free.

      Download

      Support

    • Software Reference Manual - StudioLive 16.0.2 (French)
    • Software Reference Manual - StudioLive 16.0.2 (English)
    • Software Reference Manual - StudioLive 16.0.2 (German)
    • Software Reference Manual - StudioLive 16.0.2 (Spanish)
    • Owner's Manual - French
    • Quick Start Guide - StudioLive 16.0.2 (Multi-Lingual)
    • Owner's Manual - Spanish
    • Owner's Manual - German
    • Owner's Manual - English
    • Safety Guide (Multi-Lingual)
    • 2-Year Limited Transferable Warranty (Multilingual)
    • Universal Control 4.5 Milestone Release Notes - English (Updated)
    • Owner's Manual - Bulgarian
    • Owner's Manual - Croatian
    • Owner's Manual - Czech
    • Owner's Manual - Dutch
    • Owner's Manual - Estonian
    • Owner's Manual - Finnish
    • Owner's Manual - Greek
    • Owner's Manual - Italian
    • Owner's Manual - Latvian
    • Owner's Manual - Lithuanian
    • Owner's Manual - Polish
    • Owner's Manual - Portuguese
    • Owner's Manual - Romanian
    • Owner's Manual - Slovak
    • Owner's Manual - Slovenian
    • Owner's Manual - Swedish
    • Capture Software Reference Manual (English)
    • Capture Software Reference Manual (Spanish)
    • Capture Software Reference Manual (French)
    • Capture Software Reference Manual (German)
    • Universal Control Software Reference Manual - English

      • Resources

    • Universal Control v4.3.3.100963 (Mac)
    • Universal Control v4.3.3.100963 (Windows)
    • PreSonus® Capture v3.1.0.66460 (Mac)
    • Universal Control v4.5.0.102825 (Mac)
    • Universal Control v4.5.0.102825 (Windows)
    • Capture 2 v2.1.0.24135 (Mac)
    • Capture 2 v2.1.0.24135 (Windows)
    • Need an older version? Click here

      • In primo piano

      Power without compromise

      The StudioLive 16.0.2 USB mixer provides plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats.

      The Fat Channel

      The unique Fat Channel provides a compressor, limiter, expander, and three-band semi-parametric EQ on every channel and bus; plus a library of professionally crafted presets with room for more. You also get a stereo, 31-band graphic EQ for the main bus, and two 32-bit delay/reverb effects processors, each with its own dedicated mix bus.

      One-click recording

      The StudioLive 16.0.2 USB is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!

      Studio One Pro 7 DAW Software License Included.

      Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.

      Specifiche

      Elettroniche

      Phantom Power

      +48 VDC (±2 VDC)

      Power Consumption

      100W (continuous)

      Voltage

      220-240V UK

      Generale

      Color

      Gray

      Product Name

      StudioLive® Classic 16.0.2 USB Digital Console Mixer, Gray, 230-240V UK

      Series

      StudioLive®

      Ingressi

      Line Input Connection Type

      1/4" TRS, Balanced

      Line Inputs Frequency Response

      20-20 kHz (±0.5 dBu at Unity Gain)

      Line Inputs Gain Range

      -20 dB to +20 dB (± 1 dB)

      Line Inputs Impedance

      10 kΩ

      Line Inputs Maximum Level

      +22 dBu (Unity Gain)

      Line Inputs Signal To Noise Ratio

      94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)

      Line Inputs Total Harmonic Distortion

      <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted

      Microphone Preamp Common Mode Rejection Ratio

      65 dB (1 kHz at Unity Gain)

      Microphone Preamp Equivalent Input Noise

      +125 dB Unweighted, +130 dB A-Weighted

      Microphone Preamp Frequency Response

      20-20 kHz (±0.5 dBu at Unity Gain)

      Microphone Preamp Input Impedance

      1 kΩ (Balanced)

      Microphone Preamp Maximum Input Level

      +12 dBu (Unity Gain)

      Microphone Preamp Signal To Noise Ratio

      -95 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)

      Microphone Preamp Total Harmonic Distortion

      0.005%, +4 dBu, 20 Hz-20 kHz, Unity Gain, Unweighted (1 kHz at Unity Gain)

      Measurements

      Product Depth

      15.56" (397 mm)

      Product Height

      5.5" (140 mm)

      Product Width

      16" (406 mm)

      Varie

      Commodity Code

      8543709099

      Digital Audio Internal Processing

      32-Bit, Floating Point

      Power Cable

      IEC

      Supported Sample Rates

      48 kHz, 44.1 kHz

      Output

      Line Outputs Connection Type

      1/4" TRS, Balanced

      Line Outputs Maximum Output Level

      +18 dBu

      Line Outputs Output Impedance

      100 Ohms

      XLR Outputs Maximum Output Level

      +24 dBu

      XLR Outputs Output Impedance

      100 Ohms

      Prestazione

      Crosstalk (Adjacent Channels)

      -87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)

      Digital Audio Bit Depth

      24

      Digital Audio Dynamic Range

      115 dB (A-Weighted, 48 kHz)

      Digital Audio Reference Level For Zero dBFS

      +18 dBu
