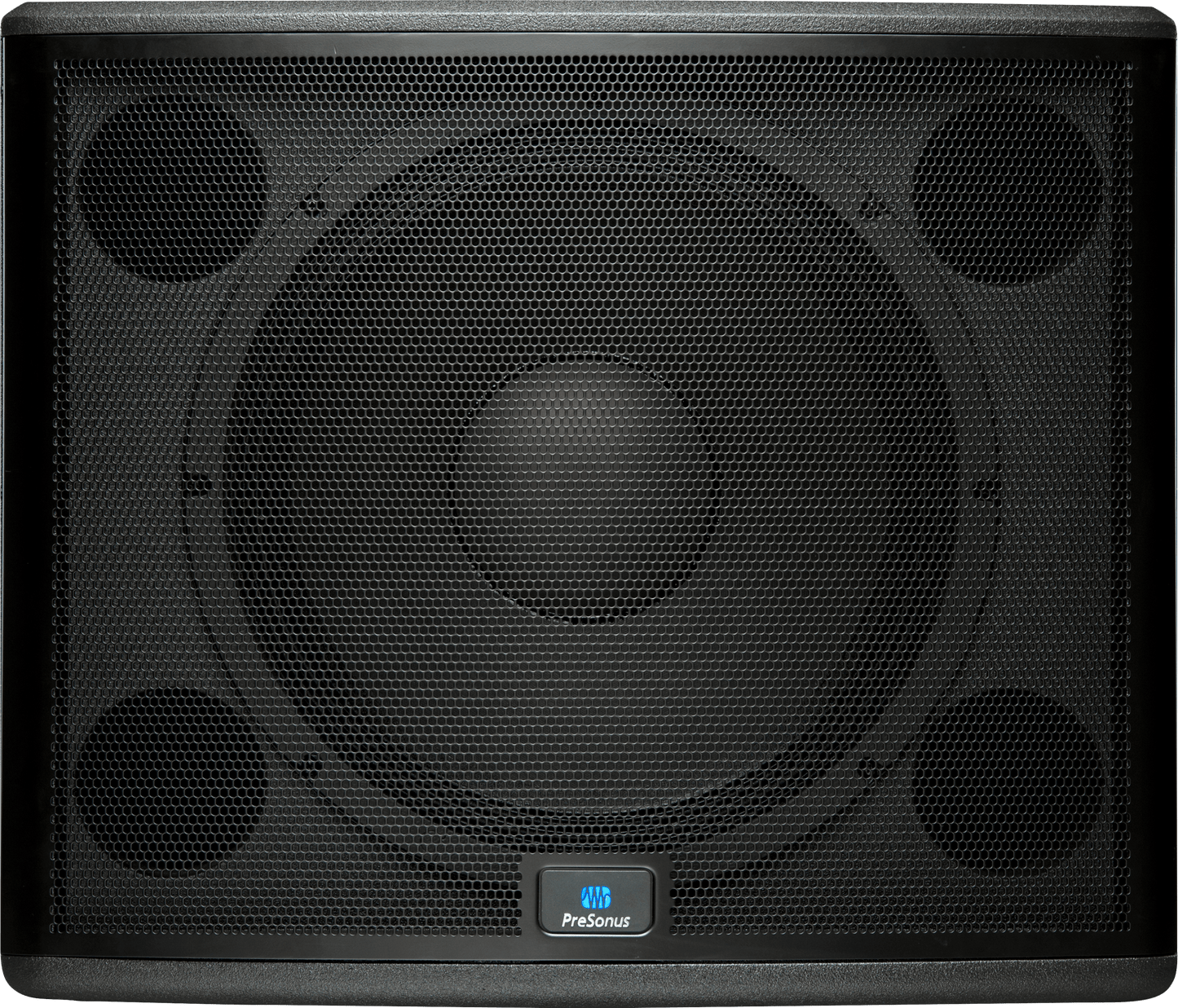

StudioLive® 18sAI Active Integration Subwoofer
StudioLive® 18sAI Active Integration Subwoofer
Impossibile caricare la disponibilità di ritiro





Panoramica
I subwoofer StudioLive® 18sAI Active Integration offrono la precisione del monitor da studio sul palco con elaborazione integrata e funzionalità di rete senza precedenti. La tecnologia PreSonus® Active Integration consente il controllo della rete wireless e cablata per le funzioni di configurazione, messa a punto e monitoraggio, utilizzando un iPad®, un laptop Mac® o Windows® o entrambi. Potente e musicale, StudioLive 18sAI estende naturalmente le basse frequenze con una risposta ai transienti rapida e accurata ed è un compagno perfetto per gli altoparlanti full-range StudioLive 312AI, 315AI e 328AI, rendendolo la scelta ideale per installazioni e applicazioni mobili in cui la fedeltà è importante .
Overview
Caratteristiche
- 18-inch ferrite transducer
- 1,000 watt (bridged), Class D amplifier
- Active Integration 32-bit, 96 kHz DSP with variable crossover, dynamic limiting, and excursion limiting

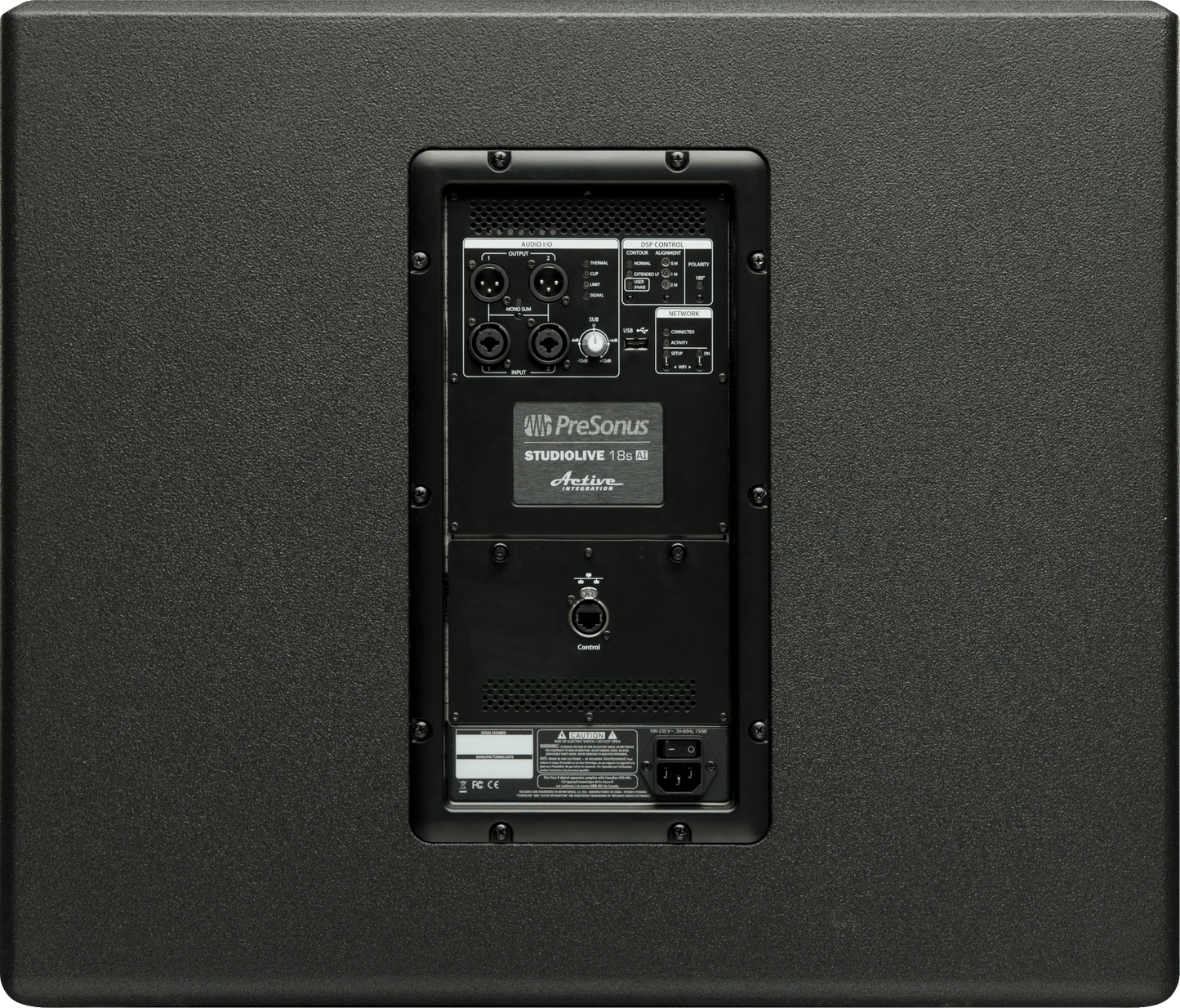

- Stereo line inputs (XLR-¼” combo) and switchable stereo/summed-mono line outputs (XLR)
- Universal Switch mode power supply with power-factor correction
- Ships with Ethernet connection for wired control; optional Dante™ card
- Alignment delay (switchable: 0, 2, or 4 feet) enables subwoofer to be placed in different positions relative to a full-range speaker system
- Wireless or wired networking with free SL Room Control software for Mac®, Windows®, and iPad® enables complete setup, tuning, and monitoring
- Network Setup Wizard automatically detects each speaker and allows you to quickly connect to your wireless router network
- Remote control over Maximum SPL/output level, high-pass filter, onboard operational modes, performance monitoring, mute, and speaker delay
- 31-band graphic EQ and 8-band parametric EQ (total of 10, including feedback notch filter)
- Visually display room layout on a laptop or iPad
- Edit, save, recall, and share speaker-setup parameters
- Comfortable, ergonomic handles
- Integrated pole insert and interlocking stacking provisions
- Optional mountable Sub Dolly and pull-tested Sub Pole to mount a full-range system atop the 18sAI
Download
Non trovi quello che stai cercando?
Accedi al tuo account my.presonus.com.
Documentation
Non trovi quello che stai cercando?
Accedi al tuo account my.presonus.com.
Specifiche
Elettroniche
Auxiliary Input
N/A
Channels
Two
Connectivity
USB
Inputs
Two - 2 x Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
VoltageRequirements
100-240 VAC, 50-60 Hz
Generale
Amplifier Type
Class-D
Color
Black
Product Name
StudioLive® 18sAI Active Integration Subwoofer, Black
Series
StudioLive®
Hardware
Audio Controls
Speaker Level (Variable: -12 dB to +12 dB), Mono Sum
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
Handle
2 Side
LF Power
2 x 500W Bridged (1000W Total)
LF Transducers
1x18" Ferrite (4" Voice Coil)
Measurements
Product Depth
26" (66 cm)
Product Height
23" (58.42 cm)
Product Width
24" (60.96 cm)
Varie
DSP Features
Contour Presets: Normal, Extended LF Delay Presets: 0m, 1m, 2m
Power Cable
IEC
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: 4-Channel Multi-Threat Limiter
Supported Sample Rates
96 kHz
Prestazione
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24 Bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1000W (Total Power Without Protection Algorithms and Limiter Enabled)
Altoparlanti
Speaker Type
Powered Subwoofer
Total Impedance
NA
