DigiMax D8

DigiMax D8

SKU: D8
Visualizza dettagli completi

DigiMax D8

      Panoramica

      8-channel Preamplifier with 48 kHz ADAT Output

      The DigiMax D8 is a proven solution for adding eight professional microphone preamplifiers to any digital recording system. You can easily integrate it into your studio, thanks to plentiful I/O, variable trim control for each preamp, 48V phantom power (switchable in odd-even pairs), fast-acting LED metering, and a 20 dB pad. And you’ll love its sound! If you’re considering expanding your system, you owe it to yourself to check out the DigiMax D8 at your favorite PreSonus dealer.

      Overview

      Caratteristiche

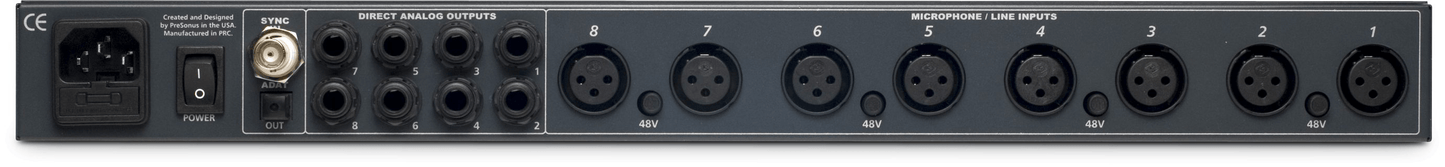

      • 2 unbalanced ¼” instrument inputs (front panel; bypass Ch. 1 and 2 mic inputs)
      • 8 balanced rear-panel XMAX mic preamps
      • 1 BNC word-clock input
      • 8 balanced ¼” direct outputs (1 per channel)
      • 1 ADAT Lightpipe optical digital output (8 channels)
      • Individual channel-trim controls with -4 dB to +50 dB gain range
      • 48V phantom power for condenser microphones (switchable in pairs)
      • -20 dB pad on every channel
      • 4-segment, fast-acting LED input meter
      • Clock source (sets clock to external or internal with 44.1 or 48 kHz sample rate)
      • Professional-quality AD converters (+107 dBu dynamic range)
      • ADAT Lightpipe digital output: 8 channels at 24-bit resolution and 44.1 and 48 kHz internal sampling rate
      • Word-clock primary sync via ADAT Lightpipe or secondary sync to external word clock
      • Internal power supply with standard IEC connector
      • 1U rack-mountable, rugged steel chassis

      Download

      Documentation

    • Owner's Manual - English
    • 2-Year Limited Non-Transferable Warranty (Multilingual)
