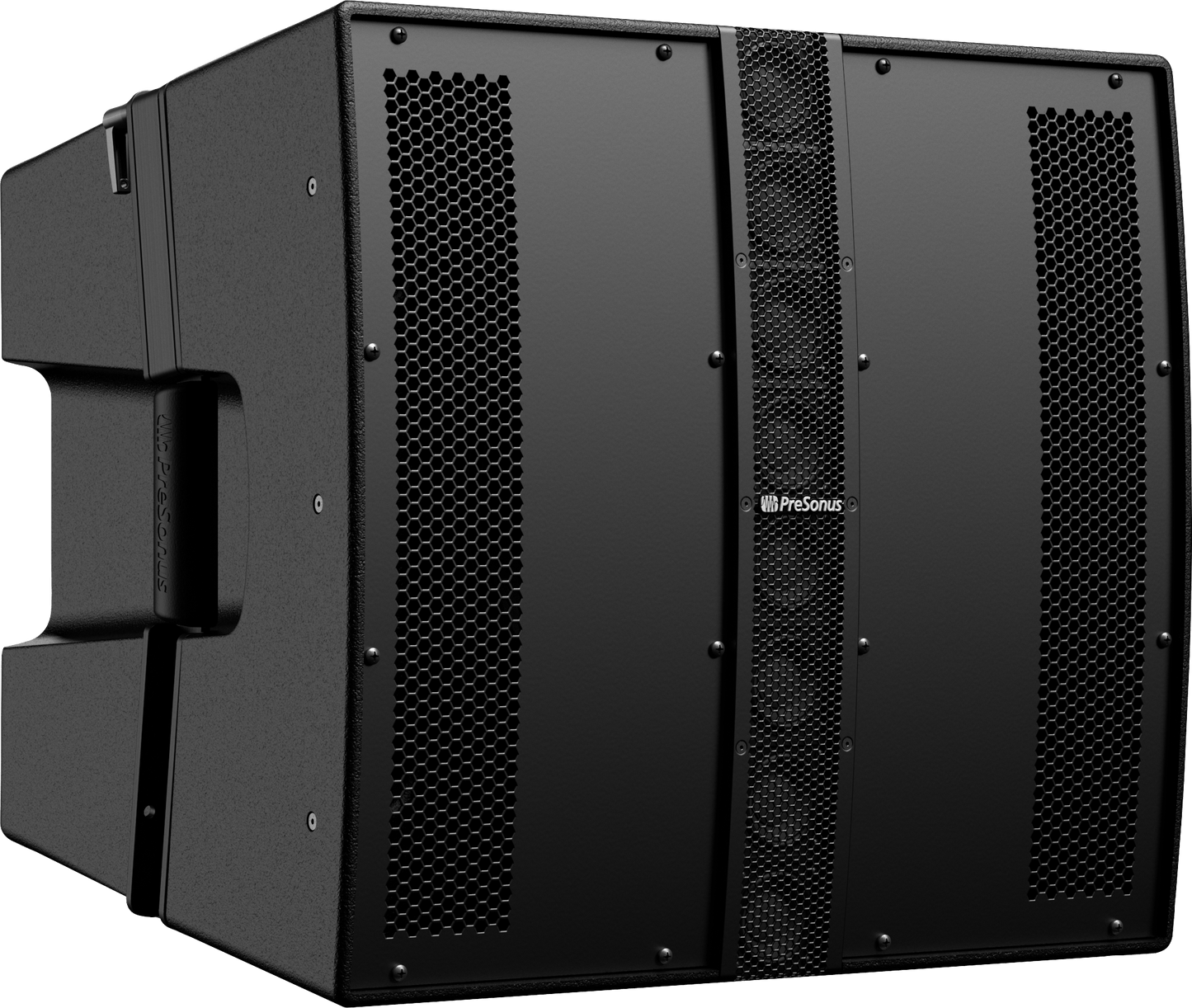

CDL12P Constant Directivity Sound Reinforcement Loudspeaker
CDL12P Constant Directivity Sound Reinforcement Loudspeaker
Panoramica
I diffusori CDL12 hanno impressionato le alette di tutto il mondo quando li abbiamo introdotti, grazie in gran parte al loro esclusivo design del driver in attesa di brevetto che riempie i locali con una riproduzione coerente e articolata del parlato e della musica senza sacrificare il costante SPL. Ora le stesse prestazioni di direttività costante sono disponibili nel nuovo CDL12P, un design più leggero ideale per band itineranti e DJ mobili che desiderano la stessa scalabilità e prestazioni sonore in un design portatile.
Come il CDL12, CDL12P è il risultato di anni di ricerca e sviluppo, combinando le migliori caratteristiche della tecnologia point source e line array in un design unico in attesa di brevetto. Ottieni un'intelligibilità del parlato chiara e articolata e una riproduzione musicale naturale grazie al suo modello altamente focalizzato con SPL coerente in tutta la gamma di risposta in frequenza, sia in asse che fuori asse.
L'ibrido point-source/line- del CDL12P il design dell'array offre un suono focalizzato con una copertura SPL costante sia in asse che fuori asse, rendendolo una scelta eccellente per applicazioni mobili e installate. Il rigging delle custodie CDL12P è reso più semplice grazie all'hardware di rigging integrato con caricamento a pin. Viene fornito un supporto per palo a doppia angolazione, che supporta l'uso di uno o due involucri quando montato su palo. L'amplificatore di potenza integrato in classe D da 500 W x 500 W del CDL12P è dotato di preimpostazioni DSP integrate per facilitare e semplificare le configurazioni in array.
Overview
Caratteristiche
- L'array a curva costante a direttività continua con otto driver a cono da 2 pollici disperde il suono di 120° in orizzontale
- La direttività verticale di 15˚ può essere estesa da 30˚ fino a 90˚ con ulteriori CDL12P configurabili in array< /li>
- Trasduttore LF a lunga gittata da 12 pollici con bobina mobile da 2,5 pollici
- Il basso punto di crossover a 420 Hz riduce al minimo il filtraggio a pettine e migliora l'intelligibilità del line array
- 500 x 500 watt di potenza in classe D per SPL elevati e risposta ai transienti velocissima
- DSP integrato: filtro passa-alto 90, modalità Array (1-6 box), modalità secondaria (Off, CDL18s, ULT18 o AIR18s) )

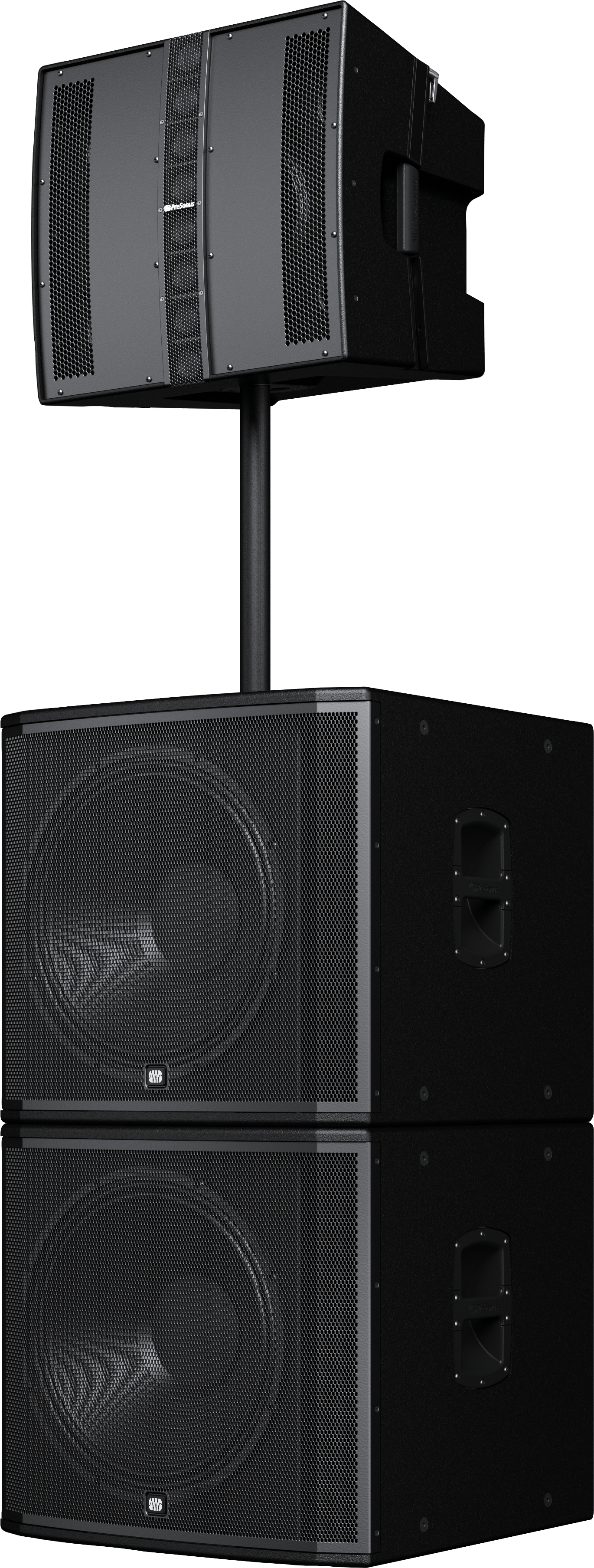

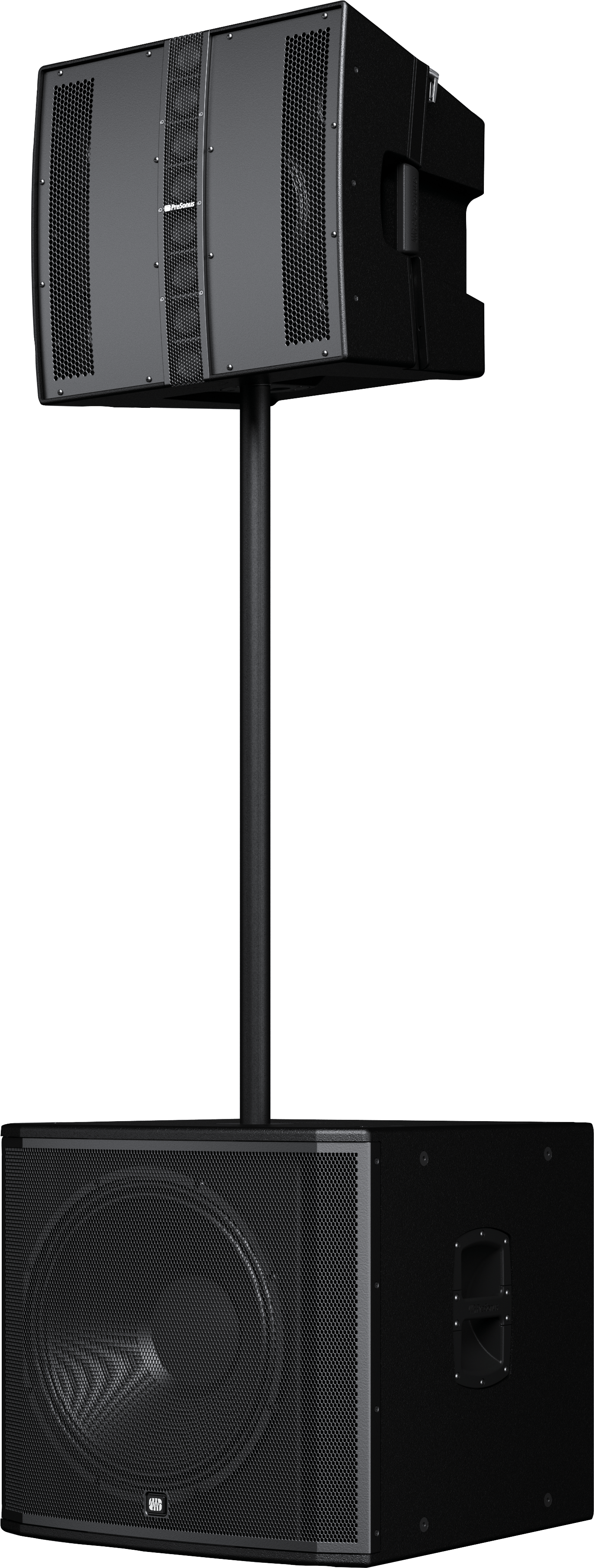

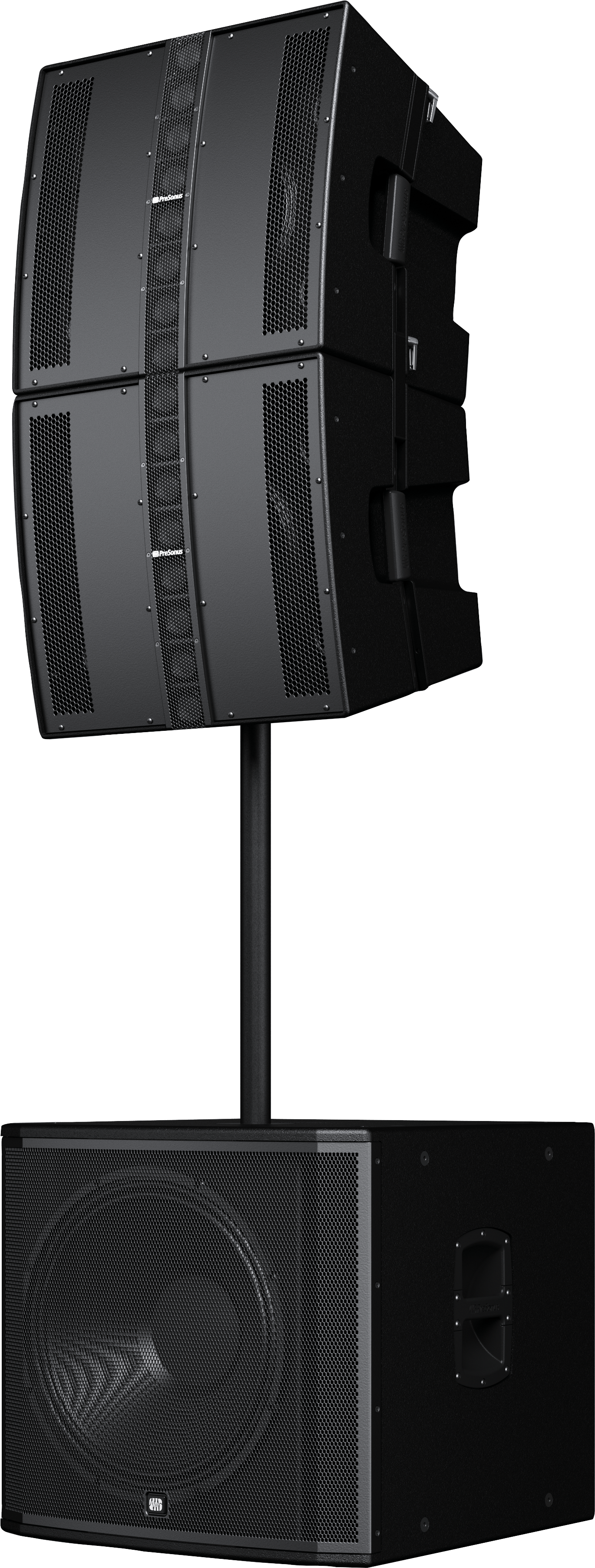

- Presa per palo da 35 mm con inclinazione verso il basso di 7,5˚ per l'utilizzo con un massimo di due CDL12P su un treppiede o su PreSonus® CDL18 o subwoofer ULT18

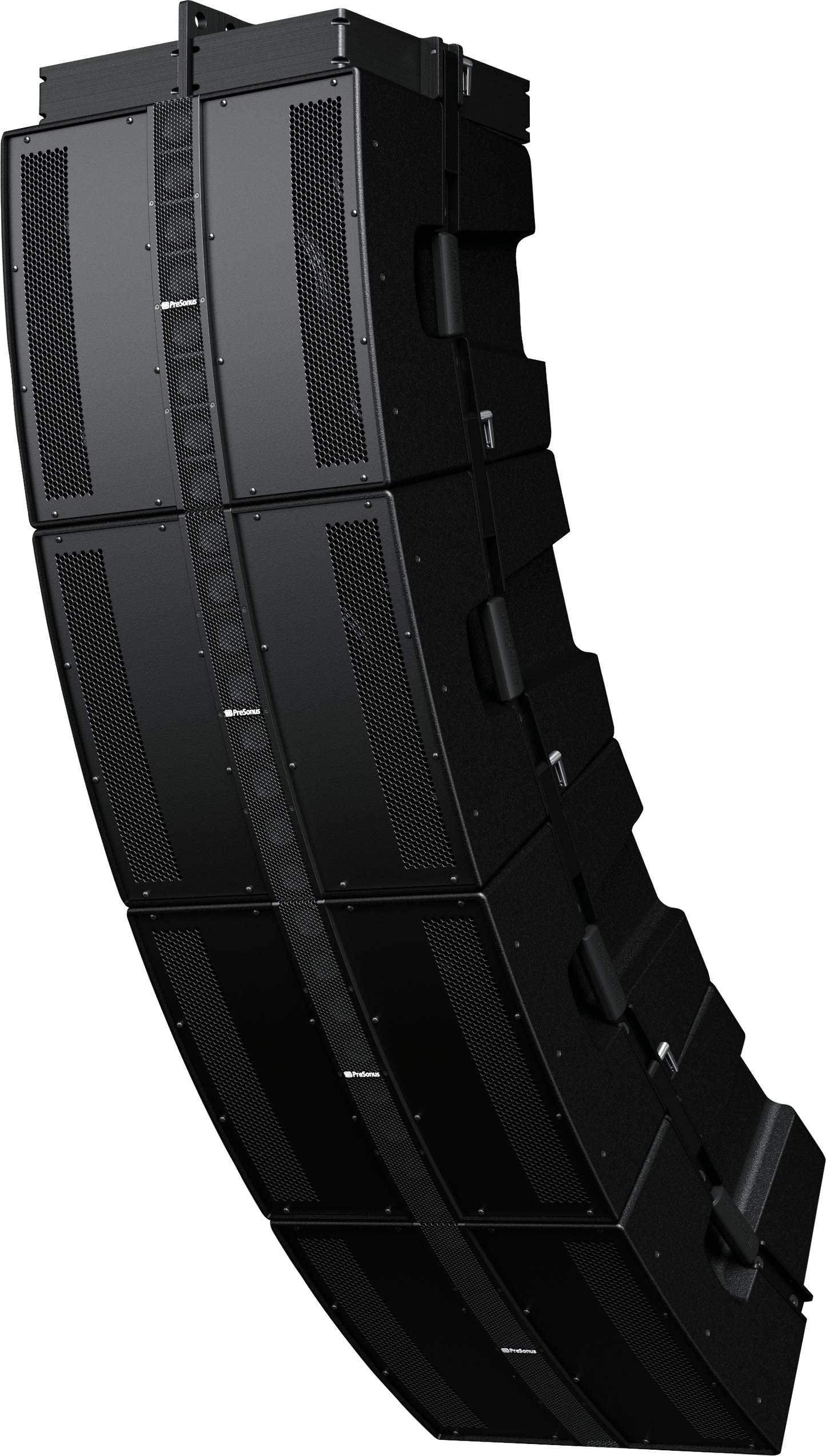

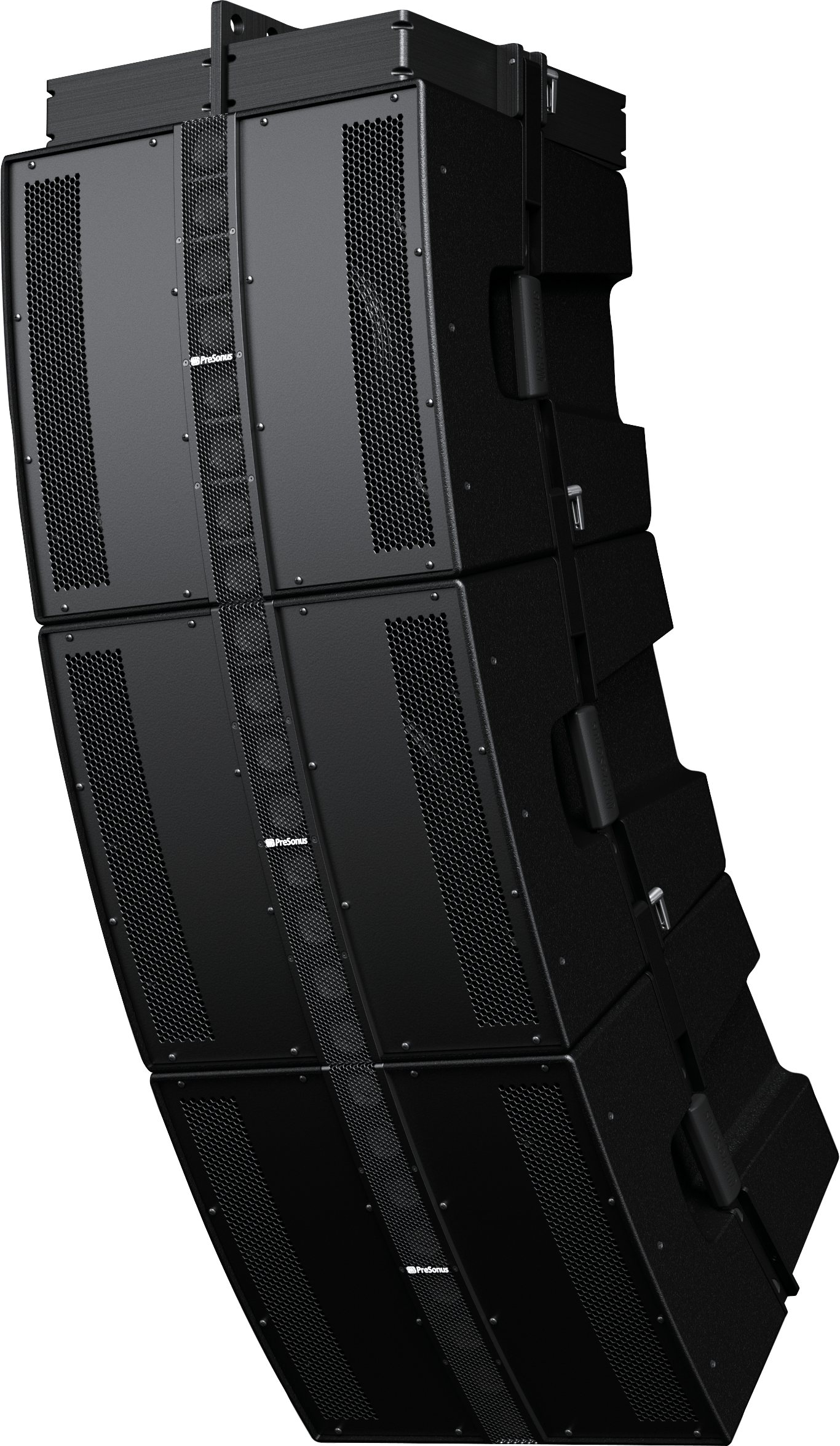

- Flyware integrato per creare una serie di fino a sei CDL12P
- Segnale, -3 dB, protezione limitatore e monitoraggio dei clip
- Involucro in plastica robusto e leggero e griglia in acciaio da 1,2 mm di qualità turistica: ideale per band itineranti e dispositivi mobili DJ
Download
Non trovi quello che stai cercando?
Accedi al tuo account my.presonus.com.
Documentation
Non trovi quello che stai cercando?
Accedi al tuo account my.presonus.com.
In primo piano
The CDL12P’s Constant Directivity Design

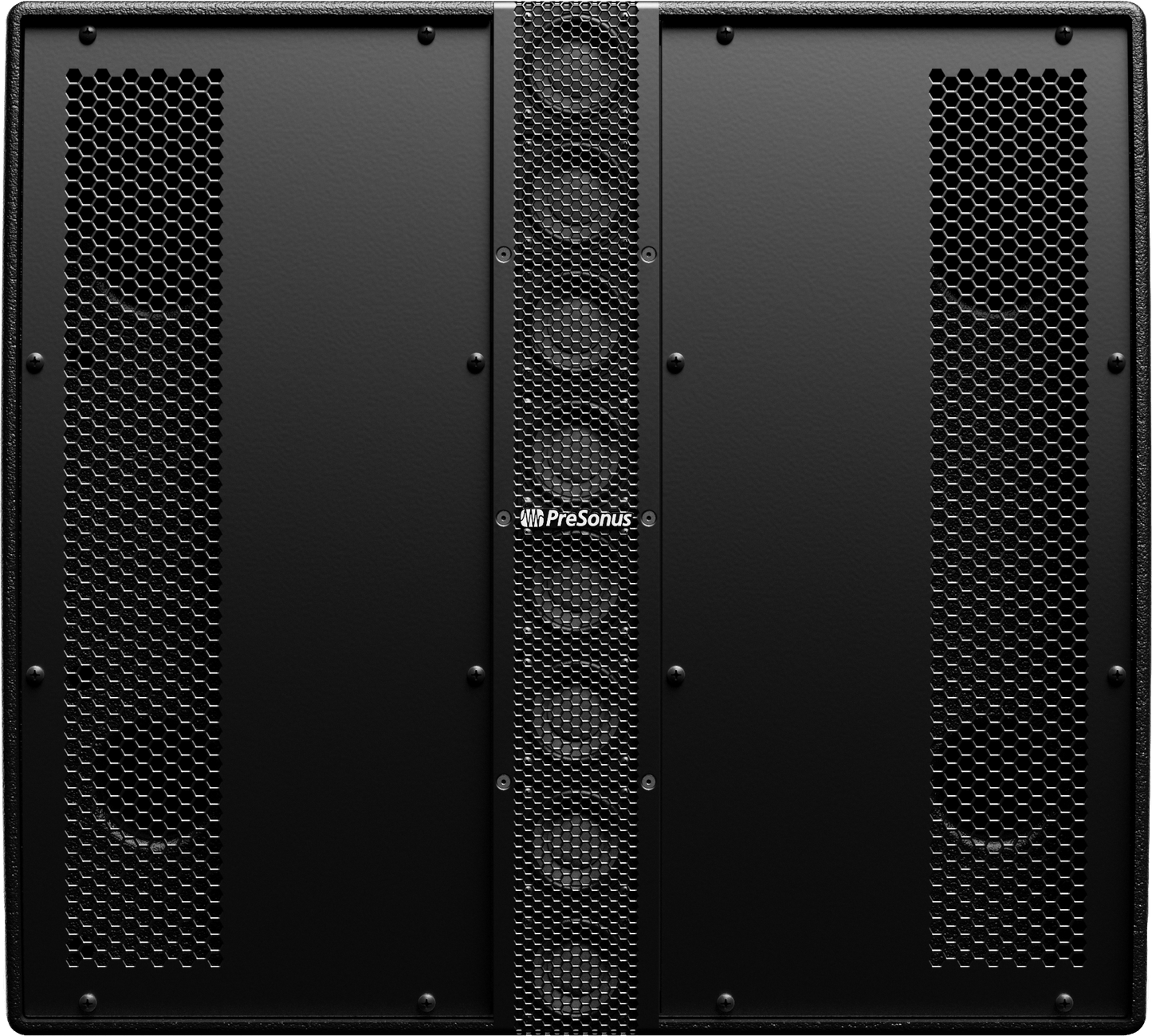

Each CDL12P consists of 8 2-inch drivers aligned in a segmented, circular-arc, HF array centered in front of a 12-inch woofer. The output of the LF driver travels from the same acoustic axis as the HF array so the pattern always radiates from the center. This avoids near-field anomalies and makes the CDL12P ideal for a broad range of venue sizes.
More About the CDL12P’s HF Driver Array
The 2-inch cones’ fast transient response is matched for high- and mid-range reproduction. This is enhanced by setting the internal crossover to 420 Hz, so the CDL12P reproduces audio seamlessly, with no gaps at the heart of the musical range. This also minimizes comb filtering between 12-inch bass drivers in an array for a smooth low-mid response.
CDL12P Power Amplification
Each 2-inch speaker in the high-frequency driver array has a 1-inch voice coil, and the entire array is driven by a 500W Class D amplifier. Because the power is shared across eight voice coils, power compression is reduced, resulting in an efficient design and a flatter phase response for less fatiguing listening and a refined, balanced sound.
CDL-series Rigging Accessories
CDL loudspeakers and rigging hardware are rated for a 10:1 load. The CDL Rigging Grid is required for flown installations. The CDL Rigging Extension Bar provides tilt control. The CDL Rigging Sling is required with 4 or more CDL loudspeakers in a vertical array and when using the CDL Rigging Extension Bar with a tilt of 12˚ or greater.
PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Specifiche
Elettroniche
Auxiliary Input
N/A
Channels
One
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
4.2A
VoltageRequirements
100-240 VAC, 50-60 Hz
Generale
Amplifier Type
Class-D
Color
Black
Product Name
CDL12P Constant Directivity Sound Reinforcement Loudspeaker, Black, 220-240V UK
Series
CDL
Hardware
Audio Controls
Preset Select (Number of Arrayed Boxes) HPF On/Off PreSonus Subwoofer Configuration Preset (None, CDL18s, ULT18, AIR18s)
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
1000W Peak, 500W Program (250W RMS)
HF Transducers
8 x 2” (1” Voice Coil)
Handle
2 Side
LF Power
1000W Peak, 500W Program (250W RMS)
LF Transducers
12” (2.5” Voice Coil)
Pole Socket
Dual-position pole mount (0˚ and 7.5˚)
Ingressi
Line Inputs Impedance
40 kΩ
Measurements
Product Depth
18.25" (46.4 cm)
Product Height
18.5" (47.0 cm)
Product Width
20.5" (52.1 cm)
Varie
Commodity Code
8518220090
Power Cable
Locking AC In and Out
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: Limiter
Suspension
Integrated Rigging (10:1 Load)
Prestazione
Amplifier Dynamic Range
119 dB (A-Weighted)
Peak SPL
130 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
2000W Peak, 1000W Program (500W RMS)
Altoparlanti
Coverage Pattern
120 degree (H) x 15 degree (V)
Crossover Frequency
420 Hz
Speaker Type
Active 2-Way
Total Impedance
NA
Specifiche
Elettroniche
Auxiliary Input
N/A
Channels
One
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
4.2A
VoltageRequirements
100-240 VAC, 50-60 Hz
Generale
Amplifier Type
Class-D
Color
Black
Product Name
CDL12P Constant Directivity Sound Reinforcement Loudspeaker, Black, 220-240V EU
Series
CDL
Hardware
Audio Controls
Preset Select (Number of Arrayed Boxes) HPF On/Off PreSonus Subwoofer Configuration Preset (None, CDL18s, ULT18, AIR18s)
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
1000W Peak, 500W Program (250W RMS)
HF Transducers
8 x 2” (1” Voice Coil)
Handle
2 Side
LF Power
1000W Peak, 500W Program (250W RMS)
LF Transducers
12” (2.5” Voice Coil)
Pole Socket
Dual-position pole mount (0˚ and 7.5˚)
Ingressi
Line Inputs Impedance
40 kΩ
Measurements
Product Depth
18.25" (46.4 cm)
Product Height
18.5" (47.0 cm)
Product Width
20.5" (52.1 cm)
Varie
Commodity Code
8518220090
Power Cable
Locking AC In and Out
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: Limiter
Suspension
Integrated Rigging (10:1 Load)
Prestazione
Amplifier Dynamic Range
119 dB (A-Weighted)
Peak SPL
130 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
2000W Peak, 1000W Program (500W RMS)
Altoparlanti
Coverage Pattern
120 degree (H) x 15 degree (V)
Crossover Frequency
420 Hz
Speaker Type
Active 2-Way
Total Impedance
NA
