AudioBox USB® 96 Studio Ultimate Bundle - 25th Anniversary Edition
AudioBox USB® 96 Studio Ultimate Bundle - 25th Anniversary Edition
Impossibile caricare la disponibilità di ritiro





Panoramica
Kit di registrazione hardware/software completo
Produci e registra come un professionista con un pacchetto tutto PreSonus® acquistabile singolarmente che include un'interfaccia audio/MIDI, software, altoparlanti monitor, cuffie, un microfono, cavi e un'asta per microfono da tavolo.

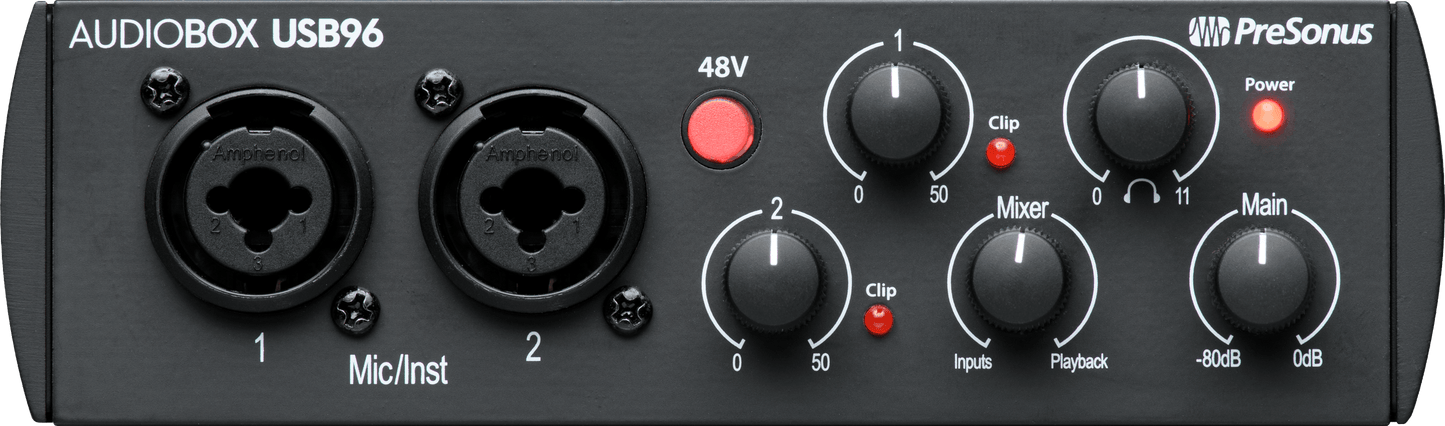

< p>L'interfaccia AudioBox® USB 96 offre le caratteristiche giuste per la registrazione di base, inclusi due ingressi combo microfono/strumento e monitoraggio a latenza zero. Alimentato dal bus, costruito per viaggiare, compatibile con la maggior parte dei software di registrazione per macOS e Windows e dotato di preamplificatori microfonici ad alte prestazioni e convertitori a 24 bit e 96 kHz, l'AudioBox USB 96 semplifica l'avvio immediato della registrazione.Studio One™ Artist per macOS e Windows ti consente di lavorare rapidamente e rimanere concentrato sulla tua ispirazione. Offre tracce e plug-in illimitati e funzionalità che normalmente non si trovano nelle DAW entry-level, ma è facile da imparare e utilizzare.
Ideali per gli studi in camera da letto, i monitor di riferimento multimediali attivi Eris® E3.5 offrono lo studio -suono di qualità, con una risposta in frequenza regolare e precisa. Eppure sono abbastanza compatte da adattarsi praticamente ovunque.

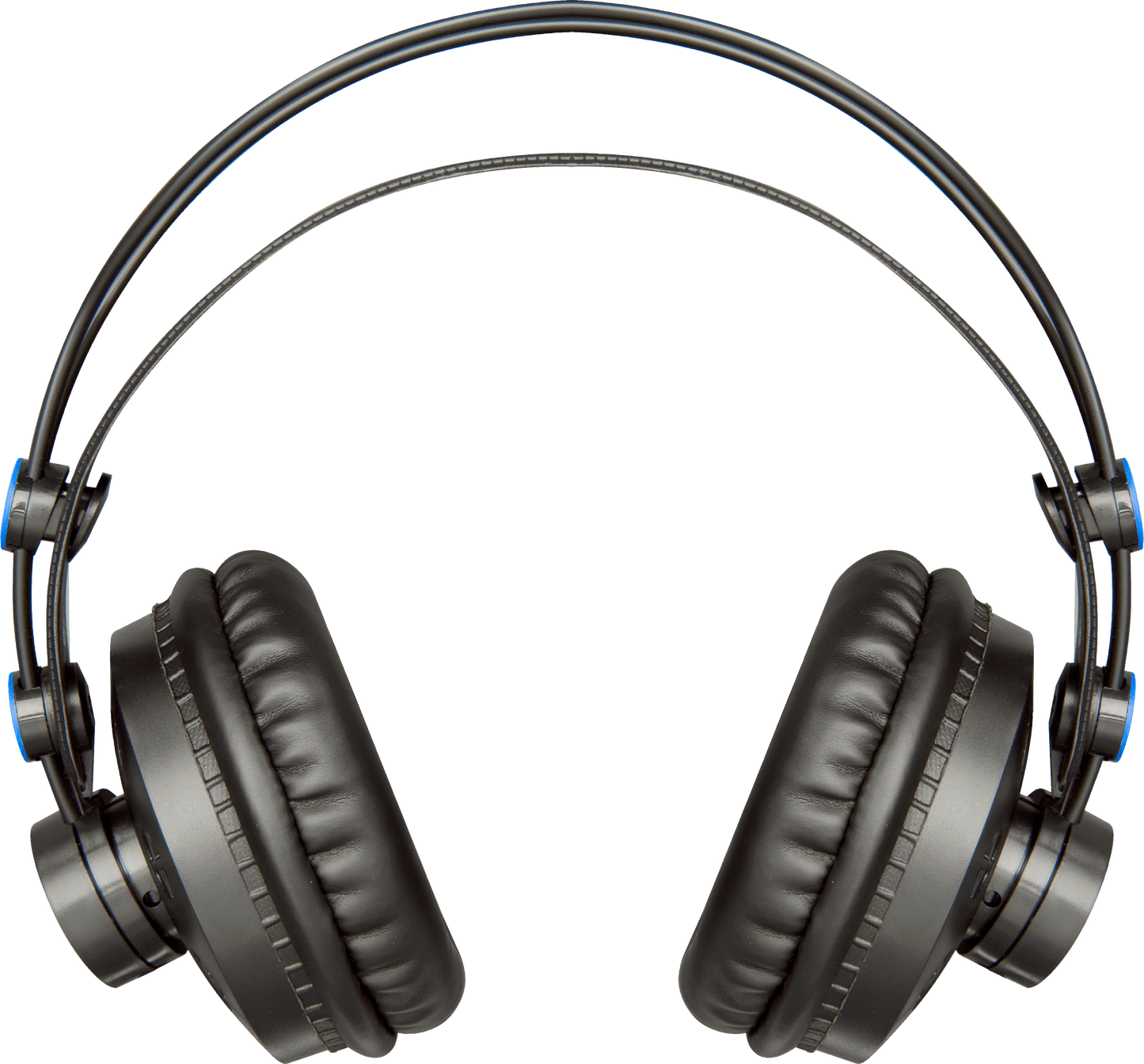

Le nostre cuffie HD7 ad alta definizione utilizzano una camera sonora semiaperta brevettata per offrire bassi eccezionalmente profondi, con un pugno di bassi bilanciato ma potente. L'accurata gamma media e la risposta estesa agli alti ti consentono di cogliere i minimi dettagli di un mix o di una traccia.
Fai iniziare bene la tua collezione di microfoni con il microfono a condensatore a diaframma largo M7. I microfoni a condensatore a diaframma largo come l'M7 tendono a "scaldare" i suoni, rendendoli il microfono ideale per la voce e un'ampia gamma di strumenti.
Overview
Caratteristiche
- Soluzione completa all-PreSonus®: tutto ciò di cui hai bisogno per produrre musica, podcast, effetti sonori e altro ancora.
- AudioBox USB® 96 Interfaccia audio/MIDI USB 2.0 alimentata tramite bus 2-in/2-out con risoluzione a 24 bit e frequenza di campionamento fino a 96 kHz
- 2 ingressi per microfono/strumento con preamplificatori microfonici di classe A a basso rumore e ad alta dinamica e alimentazione phantom a +48 V
- Ingresso e uscita MIDI 1x1
- Compatibile con Apple Intel- e Apple Silicon- basati su Mac, nonché computer Windows e software di registrazione
- Software di registrazione e produzione Studio One™ Artist per macOS e Windows con tracce e plug-in illimitati
- Studio Magic Software Suite (valore superiore a 1.000 €!)
- Monitor di riferimento multimediale Eris® E3.5 (coppia stereo) con woofer da 3,5 pollici, tweeter da 1 pollice e amplificatore di potenza da 25 W/lato
- Cuffie ad alta definizione HD7 con camera del suono semi-aperta brevettata per una risposta alle basse frequenze eccezionalmente profonda
- Microfono a condensatore a diaframma largo M7 con asta per microfono da tavolo e borsa per il trasporto
Download
Non trovi quello che stai cercando?
Accedi al tuo account my.presonus.com.
Documentation
Software
Non trovi quello che stai cercando?
Accedi al tuo account my.presonus.com.
Specifiche
Accessories
Included Accessories
1/8" to 1/4" (3.5 to 6.3 mm), Screw-On, Gold-Plated, Stereo Mini-Plug
Elettroniche
Connectivity
USB 2.0
Headphone Jack
1/4" TRS Active Stereo
Input Impedance
10 kΩ
Inputs
Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)
Line Out
Two - 1/4" Balanced (Left and Right)
Phantom Power
+48 VDC (±2 VDC)
Phantom Power Requierments
+12 to +52 VDC, 3 mA
Generale
Color
Black
Product Name
AudioBox® USB® 96 Studio Ultimate Bundle - 25th Anniversary Edition, Black, UK
Series
AudioBox®
Hardware
Audio Controls
Volume Range: A-Type Taper MF Control: Variable (-6 to +6 dB, center 100 Hz) HF Control: Variable (-6 to +6 dB, center 10 Hz)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Driver Type
50 mm, Neodymium
HF Transducers
1” Silk Dome Tweeter
LF Transducers
3.5"
Microphone Element
Electret
Microphone Types
Large-Diaphragm Condenser Microphone
Monitor Inputs
1 - Stereo 1/8" (3.5 mm), 2 - Balanced 1/4" (6.35 mm) TRS, 2 - Unbalanced RCA
Ingressi
Instrument Inputs Gain Range
(± 1 dB) +5 dB to 50 dB
Microphone Preamp Common Mode Rejection Ratio
(1 kHz, 55 dB Gain) > 45 dB
Microphone Preamp Frequency Response
(±3.0 dB) 20 Hz to 20 kHz
Microphone Preamp Gain Control Range
0 dB to 35 dB (± 1 dB)
Microphone Preamp Input Impedance
(Balanced) 1200Ω
Microphone Preamp Maximum Input Level
-3 dBu (Unity Gain, 1 kHz @ 0.5% THD+N)
Microphone Preamp Signal To Noise Ratio
>95 dB (Unity Gain, Reference = +4 dBu, 20 Hz to 22 kHz)
Microphone Preamp Total Harmonic Distortion
THD+N <0.008% (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain)
Measurements
Headphone Weight Without Cable
7.8 oz (222g)
Product Depth
1.75" (44.45 mm)
Product Height
5.5" (139.7 mm)
Product Width
5.5" (139.7 mm)
Varie
Commodity Code
8517620000
Power Cable
USB 2.0 Bus-Powered
Protections
RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
External mains fuse
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Output
Headphone Outputs Frequency Response
(±1.0 dB) 20 Hz to 30 kHz
Headphone Outputs Maximum Output
60 mW/Channel at 60Ω Load
Main And Line Outputs Output Impedance
51Ω
Prestazione
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
Dynamic Range
11 dB
Headphone Frequency Response
10 Hz to 30 kHz
Headphone Maximum Power
300 mW
Headphone Rated Impedance
32Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Maximum SPL
136 dB SPL
Microphone Frequency Response
40 Hz - 18 kHz
Microphone Sensitivity
-39 dBV/pa (12.2 mV/pa)
Peak SPL
100 dB (at 1 meter)
Polar Patern
Cardioid
Altoparlanti
Crossover Frequency
2.8 kHz
